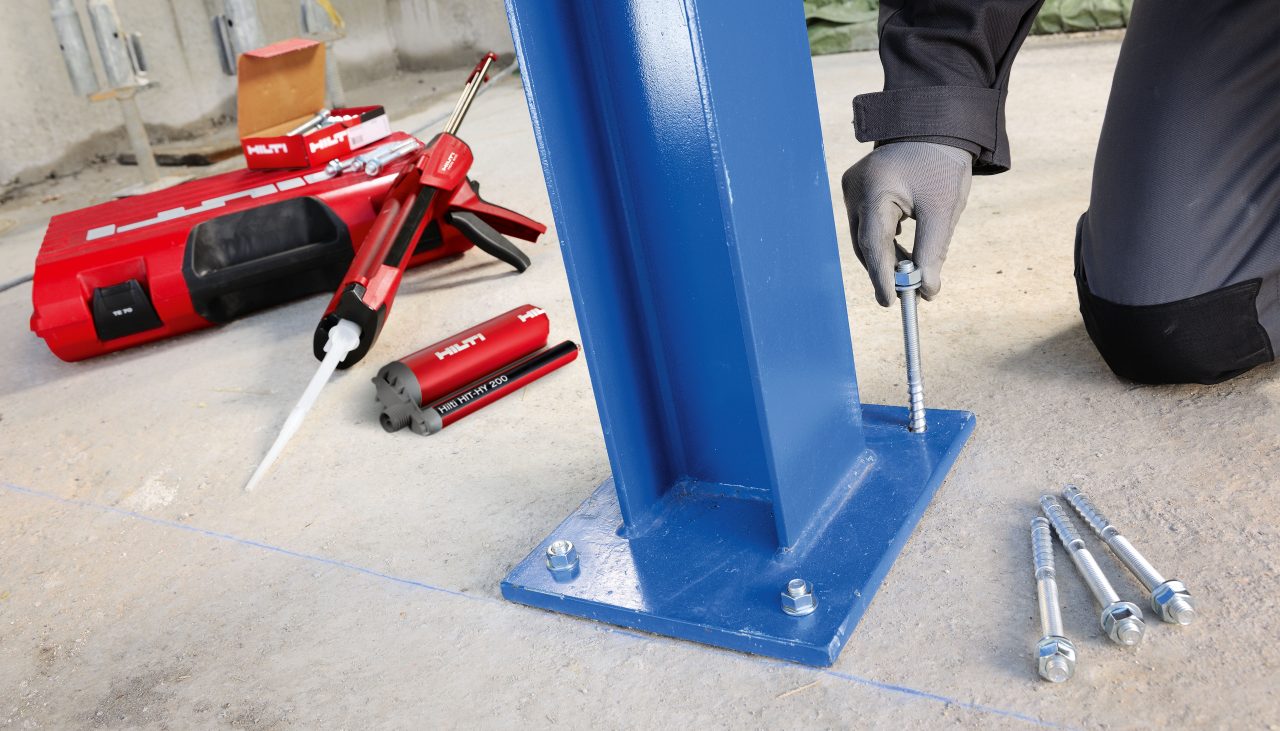

하이브리드 케미컬 앵커로 경화에 필요한 작업 대기 시간을 단축합니다.
최적의 생산성을 위한 빠른 경화 시간
하이브리드 (HY) 케미컬 앵커는 2액형 앵커이며, 에폭시 케미컬 앵커 대비 신속하게 경화되므로 빠르게 하중을 재하시킬 수 있습니다.
힐티는 작업자와 시공 현장의 안전성을 확보하고 생산성을 높이고자 하며, 이를 위해 하이브리드 케미컬 앵커가 SafeSet 시스템으로 시공할 수 있도록 설계하였습니다. 이 시스템은 드릴 작업 중 천공 홀 내 먼지를 자동 흡입 청소하므로 설치 속도가 빠르고 더욱 안전합니다.
하이브리드 케미컬 앵커의 특성 및 이점
![TE 70-ATC/AVR (3rd Generation), TE DRS-Y TE 70-ATC/AVR (3rd Generation), TE DRS-Y](/content/hilti/A1/KR/ko/business/design-center/anchor-systems/concrete-anchors/adhesive-anchor/hybrid-adhesive-anchors/_jcr_content/childSections/childsection_2012723/three_image_text_col/image_text_column/image.coreimg.jpeg/1586931813834/sds-max.jpeg)

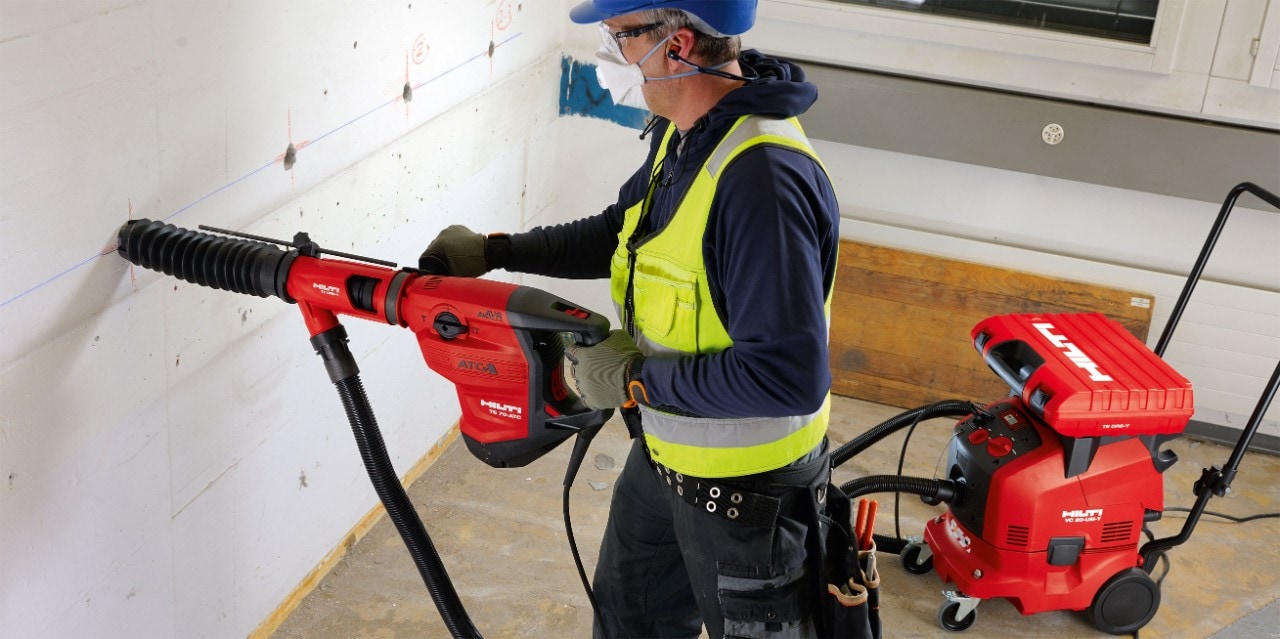

먼지 문제가 없습니다.
힐티 SafeSet이 드릴 작업시 천공 홀 내부의 먼지를 자동으로 흡입 청소하기 때문에 청소솔로 일일이 청소할 필요가 없으므로 시간을 절약할 수 있습니다.
![Anchor in warm or cold weather](/content/hilti/A1/KR/ko/business/design-center/anchor-systems/concrete-anchors/adhesive-anchor/hybrid-adhesive-anchors/_jcr_content/childSections/childsection_2012723/three_image_text_col/image_text_column_1/image.coreimg.png/1586931813861/197695.png)
온도에 강합니다.
간혹 앵커 롯드나 철근 1공을 설치하는데 1~3분 이상 소요될 수 있습니다. 여름에 기온이 상승하면 콘크리트가 뜨거워지고 하이브리드 케미컬 앵커가 조기 경화되어 작업시간이 줄어들기 때문에 시공 편의성이 다소 낮아질 수 있습니다.
힐티 HY-200 R은 케미컬이 경화되기 전에 앵커 롯드 또는 철근을 설치할 수 있도록 적절한 작업 시간을 제공하게끔 설계되었습니다.
![DD 130,DD-BI DD 130 diamond coring system Handheld wet 2 adapted](/content/hilti/A1/KR/ko/business/design-center/anchor-systems/concrete-anchors/adhesive-anchor/hybrid-adhesive-anchors/_jcr_content/childSections/childsection_2012723/three_image_text_col/image_text_column_2/image.coreimg.jpeg/1586931813887/125465.jpeg)

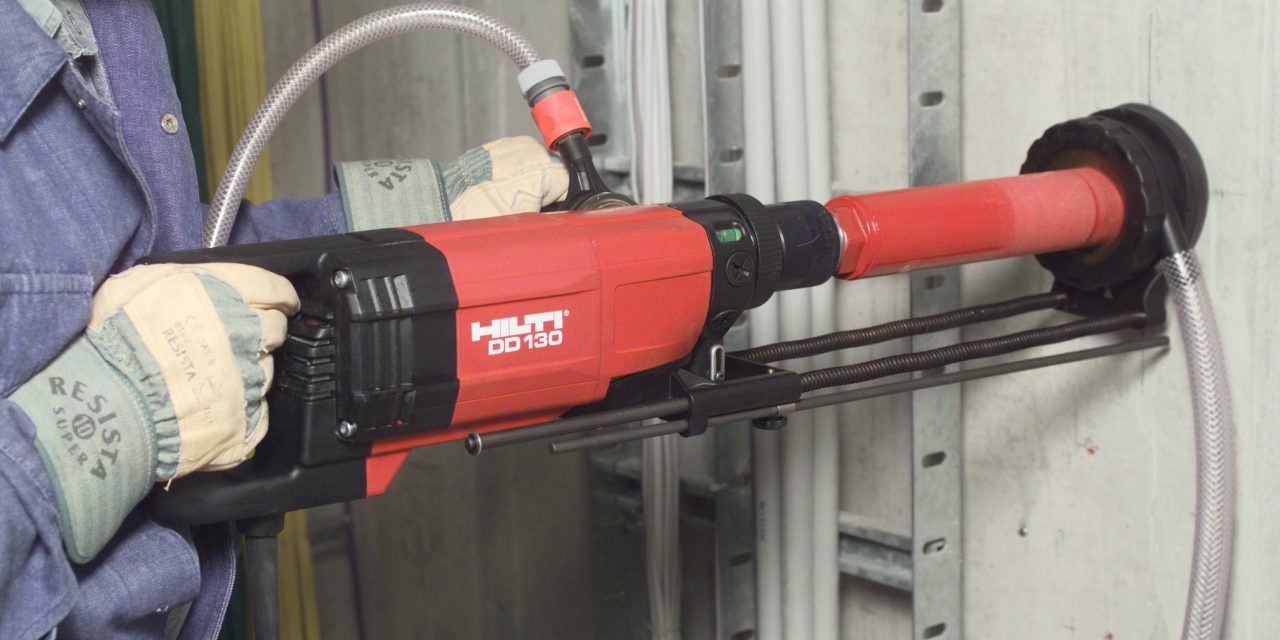

다이아몬드 코어링 홀에도 설치 가능합니다.
때때로 다이아몬드 코어링으로 앵커 천공 홀을 시공해야 하는 경우가 있습니다.
천공 홀 내면의 표면처리 도구 (러프닝 툴)와 함께 사용하는 힐티의 HIT-HY 200-R은, 균열콘크리트에서 다이아몬드 천공에 대해 미국 ICC-ESR 및 유럽 ETA 기술승인을 보유한 유일한 하이브리드 케미컬 앵커입니다.
힐티 하이브리드 케미컬 앵커
하이브리드 케미컬 앵커 HY 200
![](/content/hilti/A1/KR/ko/business/design-center/anchor-systems/concrete-anchors/adhesive-anchor/hybrid-adhesive-anchors/_jcr_content/childSections/childsection/childsection_copy_co/three_image_text_col/image_text_column/image.coreimg.jpeg/1586931814016/w1-149384-2x1.jpeg)

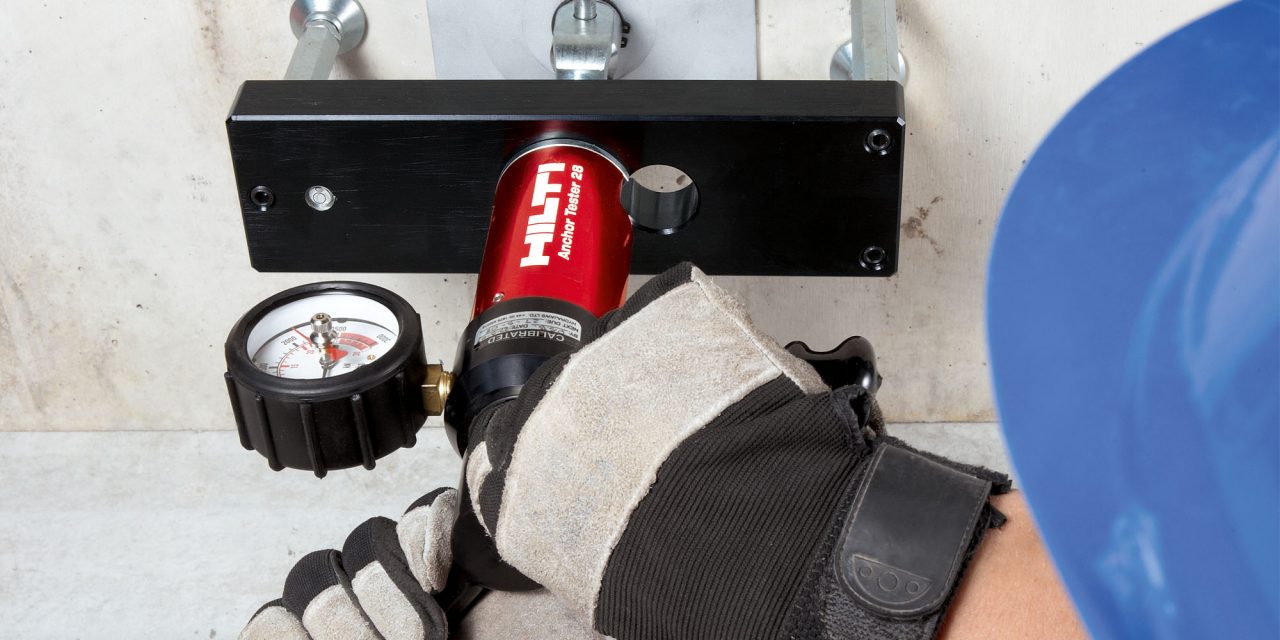

콘크리트 습윤도를 초월한 일관된 성능
앵커 시공시 습윤하거나 건조된 콘크리트의 상태에 걱정하실 필요가 없습니다. 힐티는 힐티 앵커가 습윤 및 건조 콘크리트에서 균일한 성능을 발현함을 확신합니다. 콘크리트 습윤도가 높아져도 하중값 저하가 일어나지 않도록 HIT-HY 200 A와 HIT-HY 200 R을 설계하였습니다.
하이브리드 케미컬 앵커 HY 200 R 구매하기![](/content/hilti/A1/KR/ko/business/design-center/anchor-systems/concrete-anchors/adhesive-anchor/hybrid-adhesive-anchors/_jcr_content/childSections/childsection/childsection_copy_co/three_image_text_col/image_text_column_1/image.coreimg.jpeg/1586931814057/w1-126592-2x1.jpeg)

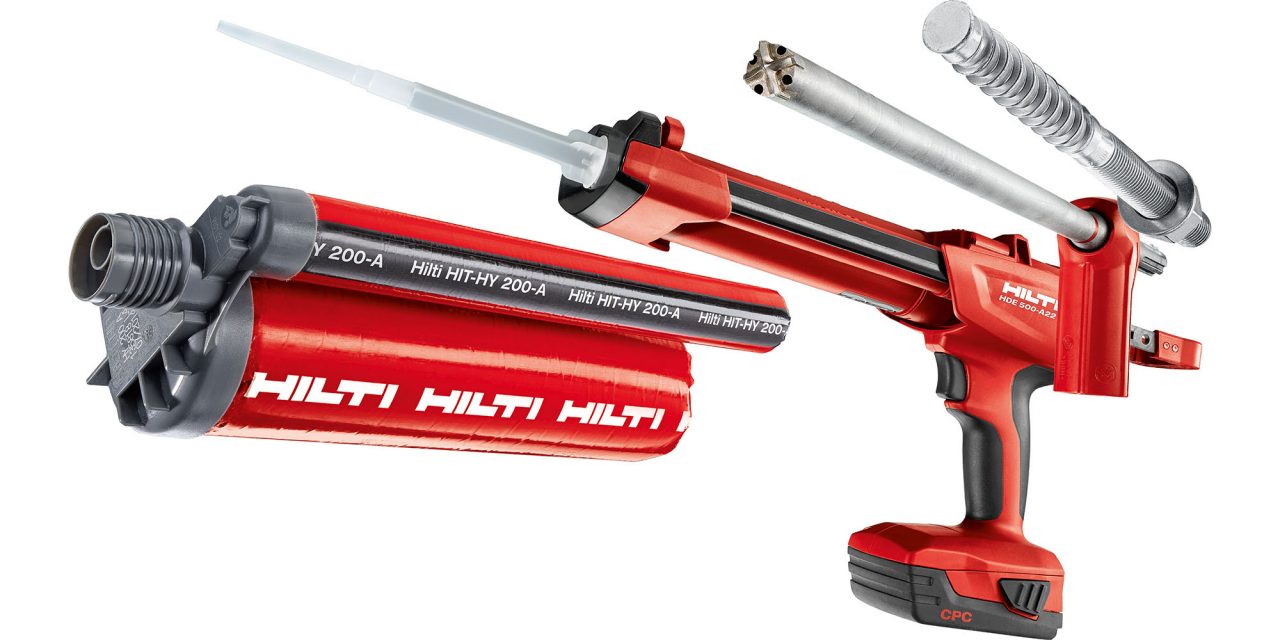

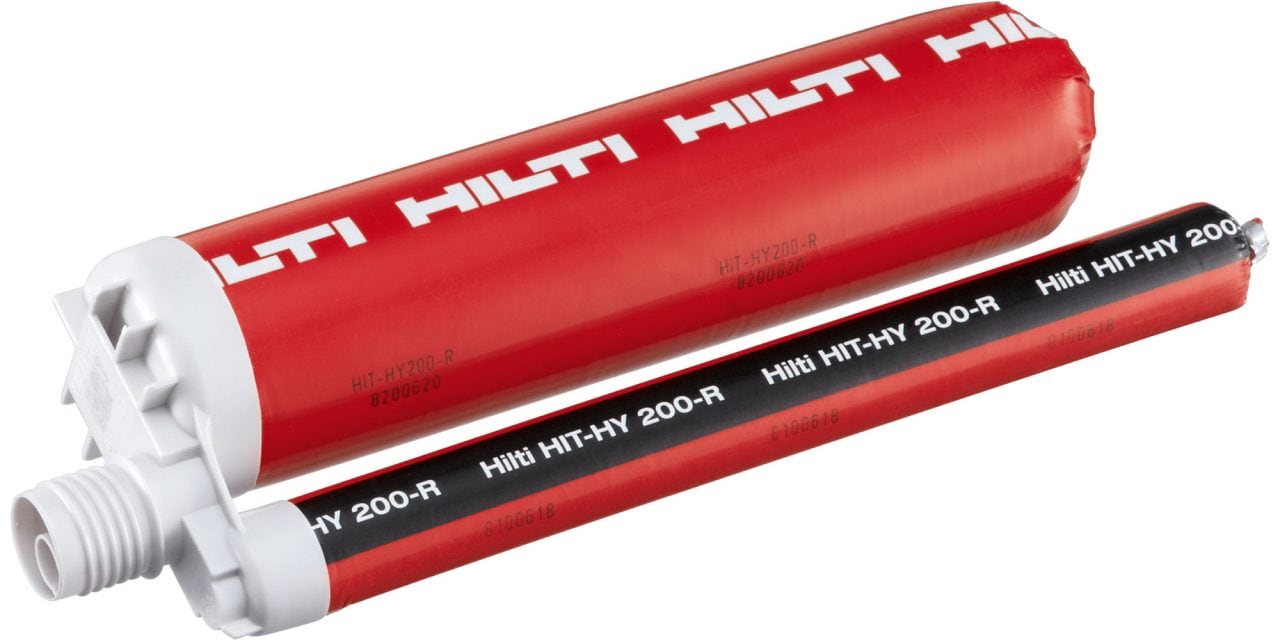

다양한 온도 조건에서의 시공 유연성
계절에 따라 날씨가 급격하게 변할 수 있습니다. 힐티는 어떠한 온도에서도 최고의 성능을 발휘해야 한다고 믿기 때문에, HIT-HY 200 A 및 HIT-HY 200 R을 설계하였습니다.
HIT HY 200-R은 하절기 중 콘크리트 모재가 뜨거울 때 작업이 가능하도록 설계되었으며, HIT HY 200-A는 추운 동절기에도 빠르게 양생됩니다.
![](/content/hilti/A1/KR/ko/business/design-center/anchor-systems/concrete-anchors/adhesive-anchor/hybrid-adhesive-anchors/_jcr_content/childSections/childsection/childsection_copy_co/three_image_text_col/image_text_column_2/image.coreimg.jpeg/1586931814078/w1-169477-2x1.jpeg)
설치 방법
천공 홀 준비
- 표준 2x2x2 수동
- 청소 SafeSet 자동
청소 설치 모재:
- 균열 및 비균열
- 콘크리트
모재 조건:
- 건조, 습윤 콘크리트

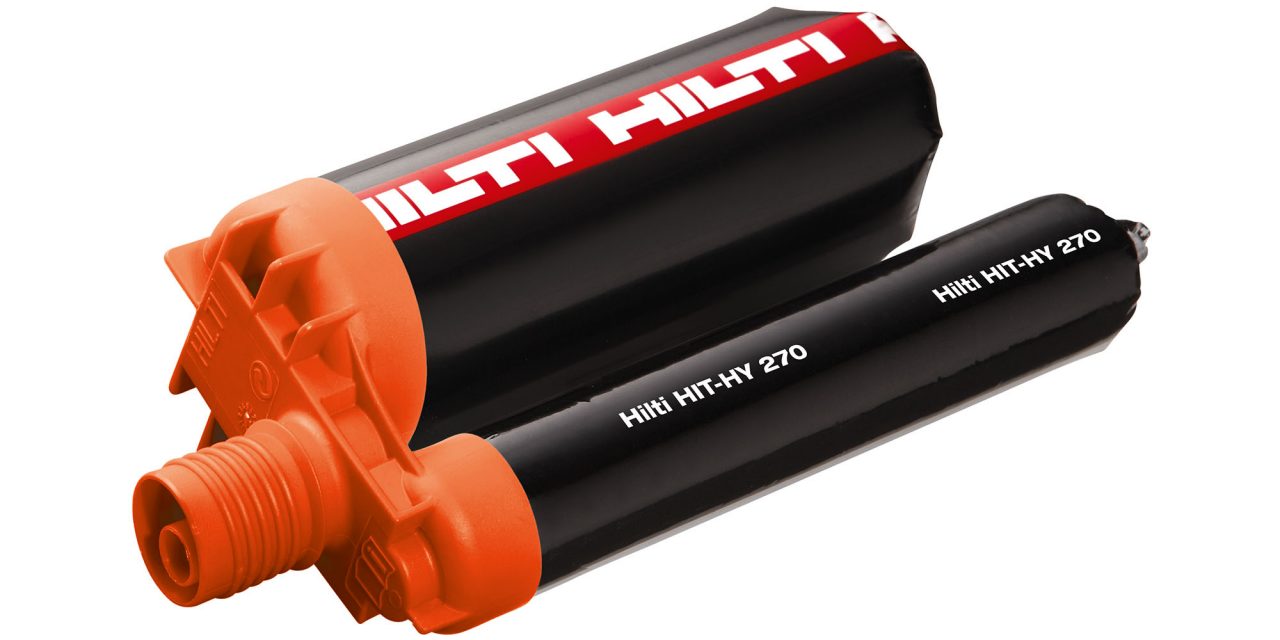

하이브리드 케미컬 앵커 HY 270
![](/content/hilti/A1/KR/ko/business/design-center/anchor-systems/concrete-anchors/adhesive-anchor/hybrid-adhesive-anchors/_jcr_content/childSections/childsection_1163334273/childsection_8410313/three_image_text_col/image_text_column/image.coreimg.jpeg/1586931814134/w1-169046-2x1.jpeg)
콘크리트 이외의 소재에도 사용
콘크리트가 아닌 모재에서 앵커를 시공해야 하는 경우가 있습니다. 석재 벽, 공동 벽돌, 유리 핸드레일 설치 등에 HIT-HY 270을 사용할 수 있으며, 힐티 Safeset 시스템과 함께 사용하면 높은 성능과 부가적인 생산성을 얻을 수 있습니다.
하이브리드 케미컬 앵커 HY 270 구매하기![](/content/hilti/A1/KR/ko/business/design-center/anchor-systems/concrete-anchors/adhesive-anchor/hybrid-adhesive-anchors/_jcr_content/childSections/childsection_1163334273/childsection_8410313/three_image_text_col/image_text_column_1/image.coreimg.jpeg/1586931814165/w1-131205-2x1.jpeg)

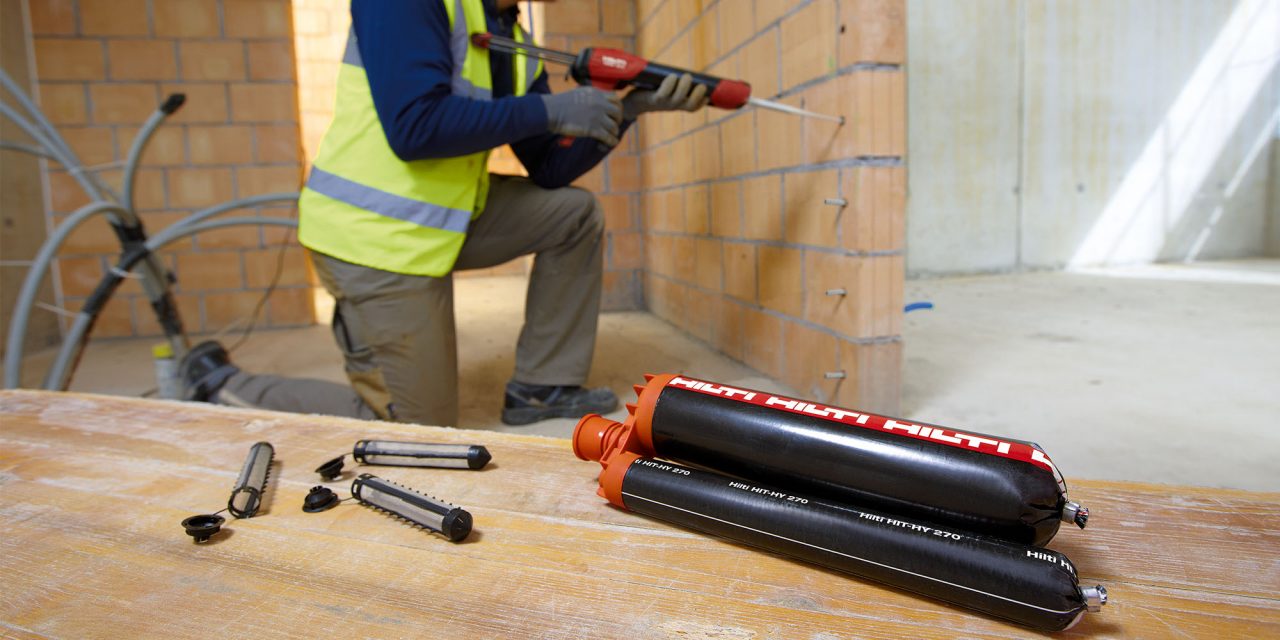

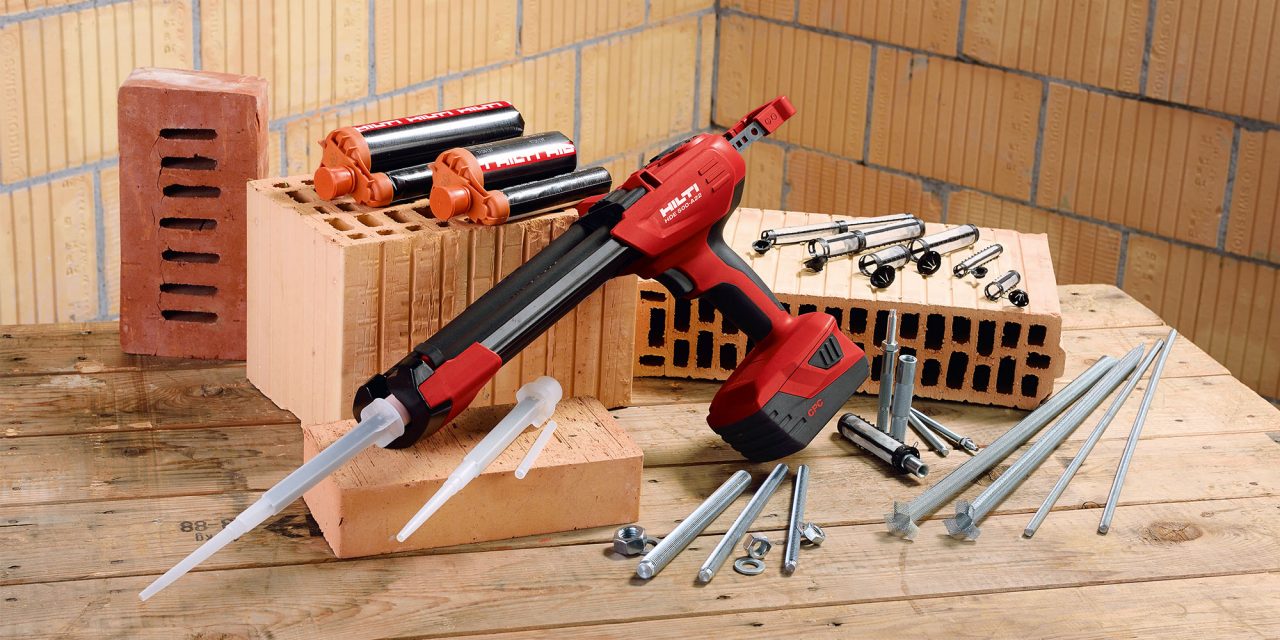

간편한 설치 시스템
내부가 비어있는 모재에 앵커링하는 것은 어려운 작업이지만 HIT-SC 및 HIT-HY 270을 사용하면 간편하게 설치할 수 있습니다. 힐티의 목표는 작업 현장을 안전하게 유지하고 생산성을 높이는 것이며 합성 슬리브망 HIT-SC로 두 가지를 얻을 수 있습니다.
![](/content/hilti/A1/KR/ko/business/design-center/anchor-systems/concrete-anchors/adhesive-anchor/hybrid-adhesive-anchors/_jcr_content/childSections/childsection_1163334273/childsection_8410313/three_image_text_col/image_text_column_2/image.coreimg.jpeg/1586931814193/w1-172487-2x1.jpeg)
설치 방법
천공 홀 준비
- 표준 2x2x2 수동
- 청소 SafeSet 자동 청소
설치 모재:
- 중공 콘크리트
- 중공 벽돌
- 솔리드 벽돌
- 유리 핸드레일
모재 조건:
- 건조
- 습윤
![Anchor Rods](/content/hilti/A1/KR/ko/business/design-center/anchor-systems/concrete-anchors/adhesive-anchor/hybrid-adhesive-anchors/_jcr_content/childSections/childsection_483140342/call_to_action_82211/image.coreimg.png/1594018624925/173955.png)

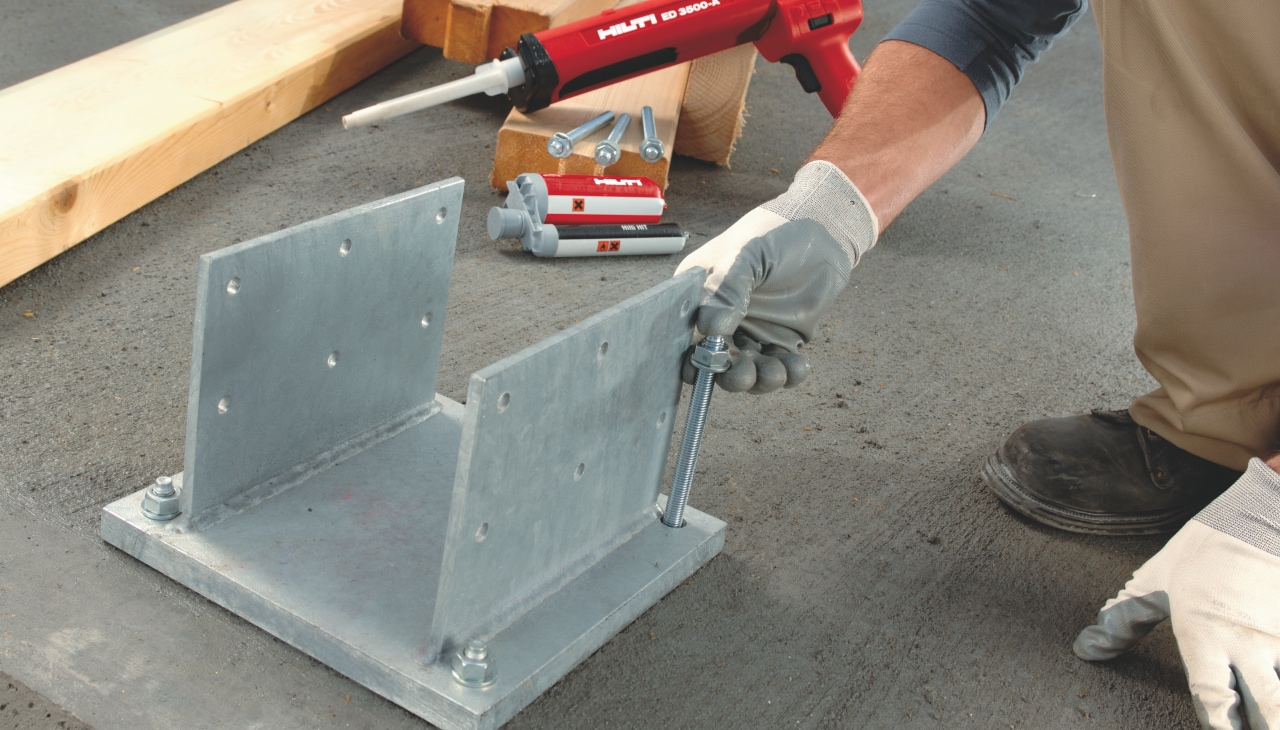

앵커 롯드 및 구성 요소
앵커 시공에 있어 앵커 롯드를 잊지 마십시오
앵커링 작업에는 케미컬 앵커만 필요한 것이 아닙니다. 힐티의 고성능 앵커 롯드로 시공을 마무리합니다.
![SafeSet](/content/hilti/A1/KR/ko/business/design-center/anchor-systems/concrete-anchors/adhesive-anchor/hybrid-adhesive-anchors/_jcr_content/childSections/childsection_483140342/call_to_action_copy_/image.coreimg.jpeg/1594018759067/safeset-600x300-pxl.jpeg)

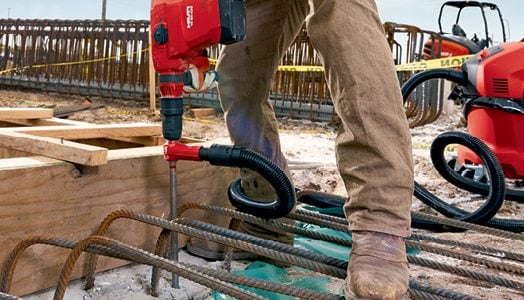

SafeSet
40% 빠른 앵커 설치 속도
힐티 SafeSet™ 기술을 사용하여 설치 시간을 단축함으로써 시간을 40%만 들여도 최상의 케미컬 앵커 성능 발현하며, 공당 앵커 설치 비용을 절감하고 부적절한 설치로 초래되는 위험성을 최소화합니다.
- 천공 홀 청소 작업을 줄이고 잠재 리스크를 예방할 수 있습니다.
